Hybrid Solar Inverter On Grid Off Grid Energy Storge Battery For Solar System Home power inverter

Solar Hybrid Inverter
High Voltage Series (PV:500V;AC:220/230V)
  • NVS4855S100-H

  • NOVA

  • 8504403090

Availability:
Quantity:

High frequency MPPT hybrid solar inverter 5.5KW 230V 48V charge controller 6000w ON OFF GRID inverter


It is a new type of hybrid solar energy storage inverter that integrates solar energy storage & city power charging energy storage and AC pure sine wave output. It adopts DSP control and has high response speed through advanced control algorithms, high reliability and high industrialization standards. There are four optional charging modes: PV, city power priority, PV energy priority or city power & solar. Two output modes of inverter and city power are optional to meet different application needs.

The solar charging module adopts the latest optimized MPPT tracking technology, which can quickly track the maximum power point of the photovoltaic array in any environment, obtain the maximum energy of the solar panel in real time, and has a wide MPPT voltage range.

IP65


Functional characteristics:


It has the function of segmented charging and discharging.

Backflow prevention and grid connection function.

Insulation resistance and leakage current detection function.

Working without battery under special conditions.

Lithium battery activation function, which can be triggered by city power or PV.

Power saving mode, reduce no-load loss.

Four charging modes: PV, City power Priority, PV Priority and city power & solar hybrid charging.

Two output modes: city power bypass and inverter output, with UPS function.

Allow lead-acid battery and lithium battery access.

ON/OFF switch controls the inverter AC output

On Grid mode can be set

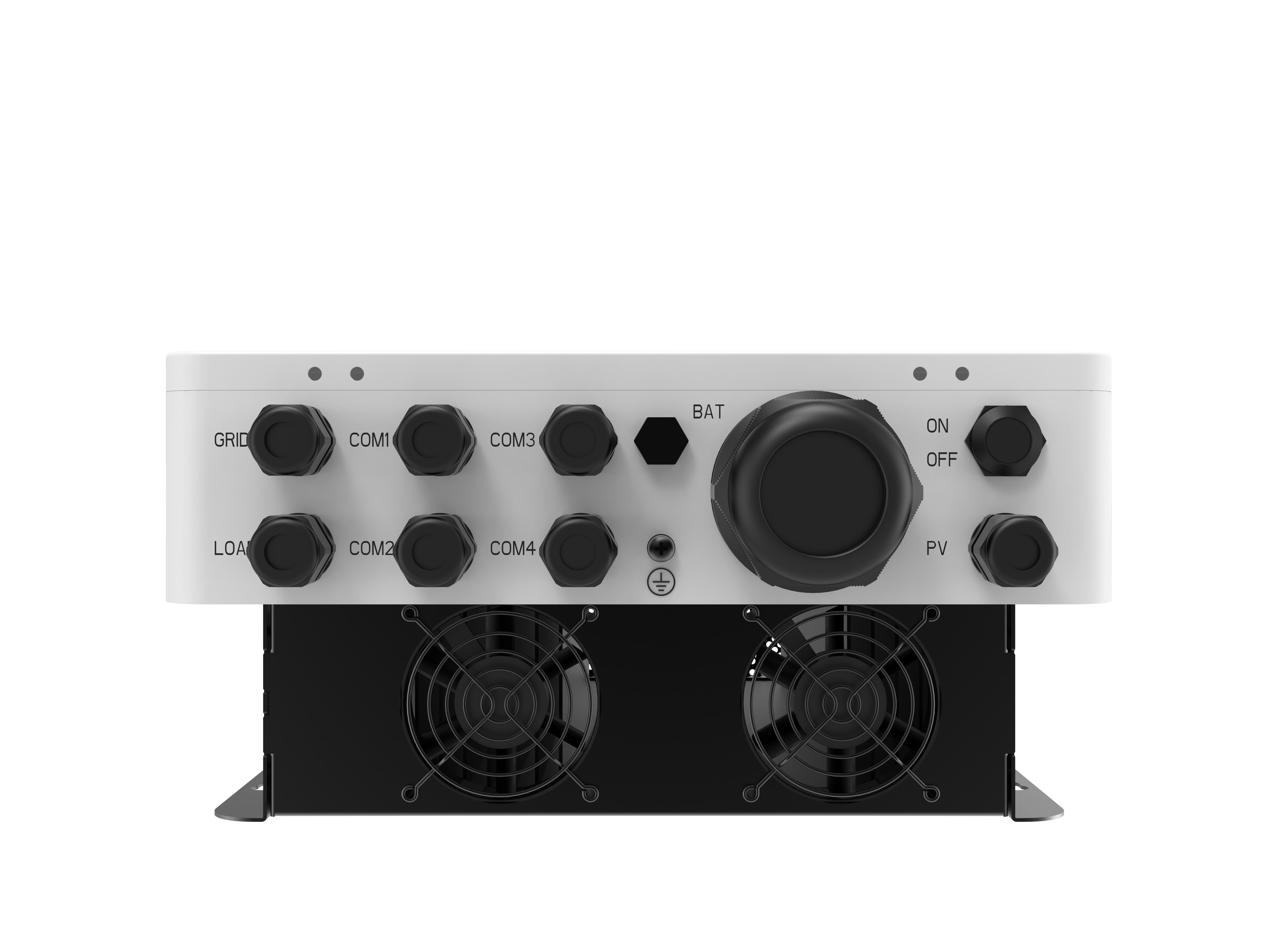

IP65--

IP65-

IP65---

详情

LCD-display

细节

接线图

diagram

Specification:

Model NVS4855S100-H Adjustable
Battery Input Parameters
Battery Type Lead-acid Battery or Lithium Battery
Rated Battery Input Voltage 48V ( Minimum Startup Voltage 44V)
Hybrid Charging Max Charging Current 100A
Battery Voltage Range 40Vdc~60Vdc ± 0.6Vdc(Undervoltage Warning /Shutdown voltage/Overvoltage Warning/Overvoltage recovery)
Solar Input Parameters
Maximum PV Open-circuit Voltage 500Vdc
PV Working Voltage Range 120-500Vdc
MPPT Voltage Range 120-450Vdc
Maximum PV Input Current 22A
Maximum PV Input Power 6000W
Maximum PV Charging Current 100A
Mains Input Parameters
Mains Maximum Charging Current 60A
Rated Input Voltage 220/230Vac
Input Voltage Range
UPS Mains Mode:(170Vac~280Vac)土2%
APL Generator Mode:(90Vac-280Vac)±2%
Frequency 50Hz/ 60Hz (Automatic Detection)
Mains Charging Efficiency >95%
Switch Time (bypass and inverter) 10ms(Typical Value)
Maximum Bypass Overload Current 40A
AC Output Parameter
Output Voltage Waveform Pure Sine Wave
Rated Output Voltage (Vac) 230Vac (200/208/220/240Vac)
Rated Output Power (VA) 5500(4780/4970/5260/5500)
Peak Power 11000VA
On-load Motor Capacity 4HP
Output Frequency Range(Hz) 50Hz土0.3Hz/60Hz±0.3Hz
Maximum Efficiency >90%
No-load Loss
Non Energy-saving Mode: ≤100W
Energy-saving Mode:≤50W (Manual Setup)

Basic Parameters
Certificate CE(IEC 62109-1)
EMC Certification Level EN61000
Working Temperature Range -25°C ~ 55°C,>45°C Derating
Storage Temperature Range -25°C ~ 60°C
Humidity Range 0% to 100%
Waterproof Grade IP65
Size(L*W*D) 556*345*182mm
Weight (kgs) 20
