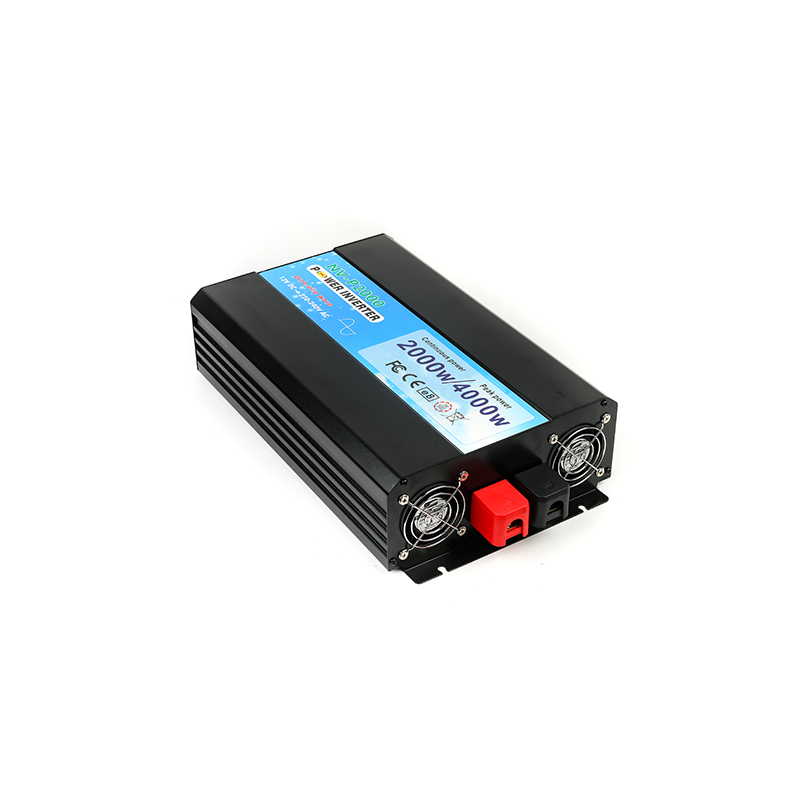

NV-P2000
NOVA
| Quantity: | |
|---|---|
Product Characteristics
1. Perfect for house, RV, motor home, camping, boat and so on
2. Stable loading performance
3. High efficiency ≥ 90%
4. Secure Protection: Low Voltage Alarm/Shut, Over Voltage Shut, Over Temperature Protection, Short Circuit Protection, Reverse Polarity Protection.
5. LED/LCD display & Remote control is optional
Data Sheet
Pure Sine Wave Inverter | ||||||||
| ||||||||
Model | NV-P300 | NV-P500 | NV-P1000 | NV-P1500 | NV-P2000 | NV-P3000 | NV-P4000 | NV-P5000 |
Rated Power | 300W | 500W | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W |
Peak Power | 600W | 1000W | 2000W | 3000W | 4000W | 6000W | 8000W | 10000W |
Output waveform | Pure Sine Wave | |||||||
Input Voltage | DC 12V or 24V | DC 12V or 24V or 48V | ||||||
Output | AC 110-120V or 220-240V 50/60Hz ± 1 | |||||||
USB port | 5V, 2.1A | |||||||
Efficiency | ≥90 % | |||||||
Low Voltage Alarm | 10.5±0.5V / 21±0.5V / 42±1V | |||||||
Low Voltage Shut | 9.5±0.5V / 19±0.5V / 38±1V | |||||||
Over Voltage Shut | 15.5±0.5V / 31±0.5V / 61±1V | |||||||
Low Voltage Recover | 13±0.5V / 24±0.5V / 48±1V | |||||||
Over Voltage Recover | 14V±0.2V / 28V±0.5V / 54V±1V | |||||||
Other Protections | Over Temperature Protection, Short Circuit Protection, Reverse Polarity Protection | |||||||
Working Temperature | -10°- +50° | |||||||
Other Protections | Short Circuit Protection, Reverse Polarity Protection | |||||||
Certification | CE , RoHS, FCC | |||||||
| ||||||||
Product Description
Off-grid Power Inverter transfers DC power from battery to AC power. It is wildly used in green solar power system for house, RV, motorhome, cabin, camping, boat, shop, lacking-electricity/unstable-electricity area.
Pure Sine Wave Inverter’s loading performance is better than modified sine wave inverter. But its cost is higher than modified sine wave inverter.
The output wave form of the Pure/True Sine Wave Inverter is same as utility power.
Our Pure/True sine wave inverter uses special isolated coupling circuit technology and high-quality components to ensure high efficiency and great loading stability.
The Pure/True Sine Wave Inverter suits to all kinds of loads without interference (eg: buzz and TV noise), no matter low-sensitivity/resistive electronic applications or high-sensitive/inductive electronics. It does not influence service life of the loads.
* Low-sensitivity/resistive electronic applications: mobile phones, computers, LCD TVs, incandescent lamps, electric fans, video broadcast, small printers, electric mahjong machines, rice cookers, etc.
* High-sensitivity/inductive electronics: The peak power of which are far more than the rated power (about 3-7 times) when start. Such as laboratory precision measuring instruments, hospital instruments, and electronics which contains motor, compressors, relays, fluorescent lamps, energy saving lamps, electric stove, microwave oven, refrigerator, air conditioner, pumps, drill etc.
