MS-108
MOES
MS-108
Availability: | |
---|---|
Quantity: | |
1.Use with Much More Convenience: Converts traditional blinds and shutters motor into smart devices that can be controlled via voice and app. Also,it can be connected with your traditional 2 gang curtain switch to smartly control your roller blinds shutter. (Note: no stop feature on the switch available,only supported via App to achieve the stop feature.)

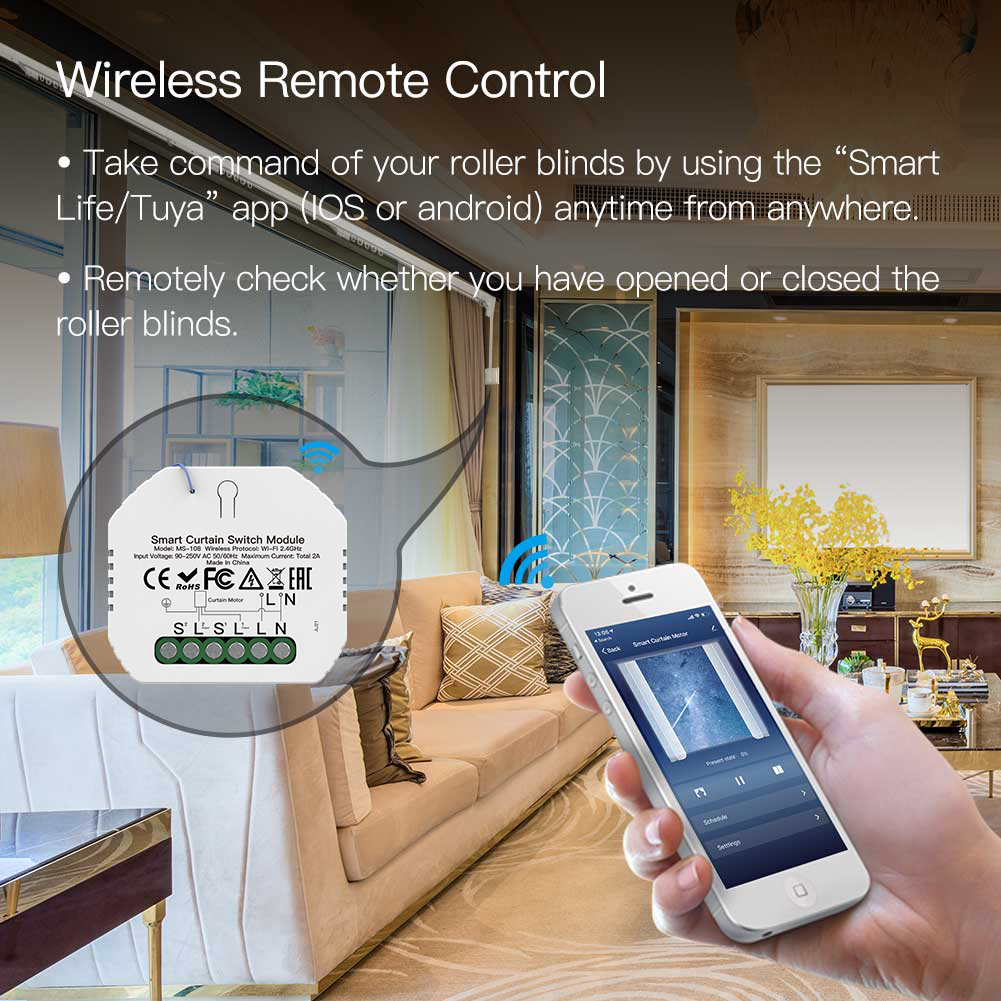

2.Wireless Remote Control: Enable to remotely control your connected devices on your smart phone wherever you are. Connects via 2.4 GHz WiFi without a hub; compatible with Smart Life or Tuya app, available on Android and iOS.
3.Hands-free Voice Control: Compatible with Amazon Alexa and Google Home for hands-free voice-activated control of curtains, blinds shutter,providing your smart life for controlling curtains with much more convenience.
4.Timer Setting and Family Sharing: Set automatic timers to open blinds at specific times through the app (schedule, countdown, loop); connects to multiple devices so you can share control with your family. Before you order: ensure motor has 4 wires (motor not included); ensure motor is not DC; WiFi only and not compatible with RF.
Voltage | 90-250V AC 50/60Hz |
Current | 2A |
Power Load | 500W(Max.) |
WiFi frequency | 2.4GHz-2.4835GHz WiFi |
Operation temperature | -10℃-+40℃ |
Case temperature | Tc +80℃(Max.) |
Operation range | ≤200m |
IP rating | IP20 |
size | 52*47*18mm/ 60g |
FAQ:
1. Q:Does this work with Google Home?
A:Yes,it does.And it’s also compatible with Alexa.
2. Q:Do I need to buy a hub to work with the curtain module.
A:No,there is no need for you to buy a hub and no hub required for the module.
3. Q:Can I control the module with my own remote control switch?
A: no, it doesn’t have RF433.
4. Q:Shall I buy a smart curtain switch to work with this module?
A:No,you can just connect the module to your traditional curtain switch to realize intelligence.
5. Q:What should I do if I can’t configure the curtain module?
A:a:Please check whether device is powered on.
b:Make sure your mobile and curtain module are under the same 2.4GHz wifi network.
c:Whether it’s in good internet conditions.
d:Make sure the password entered in App is correct.
e:Make sure the wiring is correct.
6. Q:Which products can I control with the device?
A:Curtains,shutter,blind....
7. Q:What happens if the wifi goes off?
A:You can still control the device connected to the curtain module with your traditional curtain switch and once wifi is active again the device connected to the curtain module will connect automatically to your wifi network.
8. Q:What should I do if I change the wifi network or change the password?
A:You can connect the module to the wifi network according to the App User Manual.
